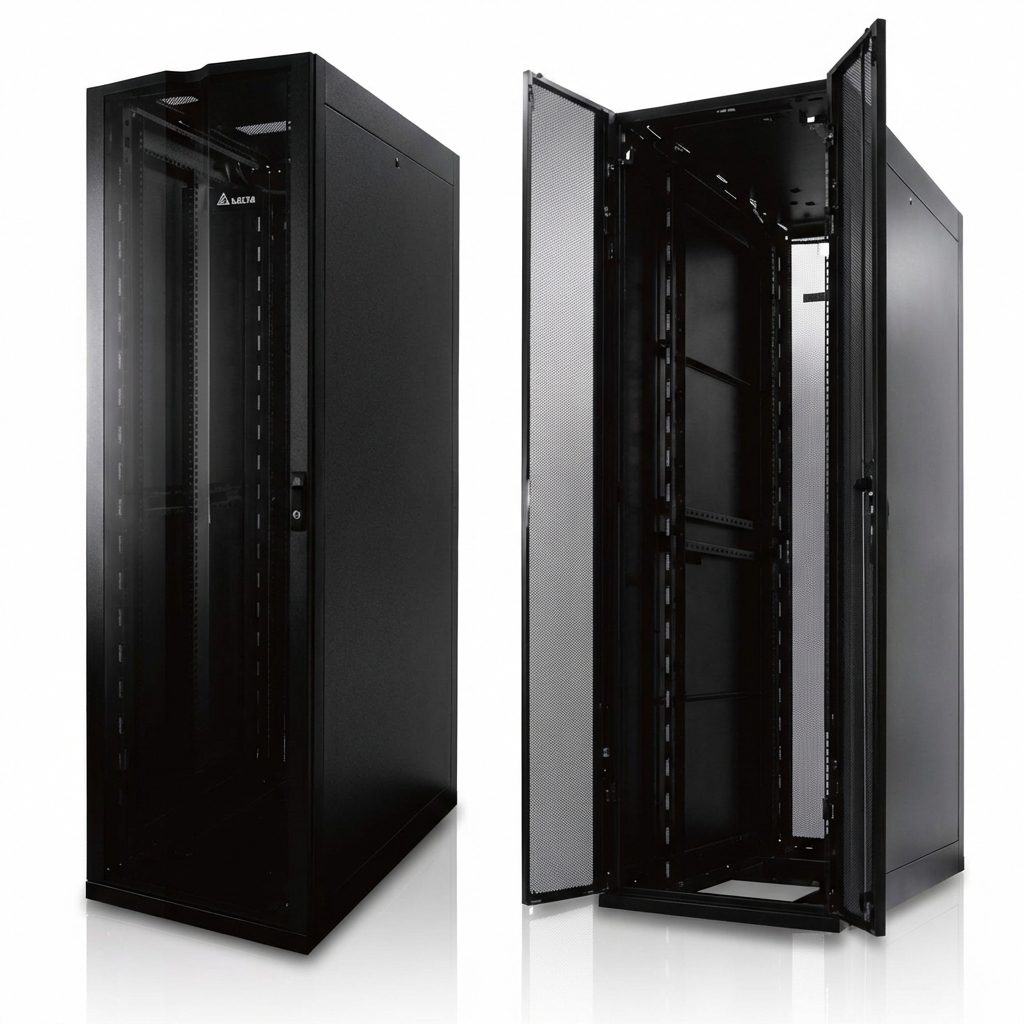

Delta InfraSuite Rack & Accessories

Smart, modular design Rack Solutions

The Delta InfraSuite modular server rack is a simple parallel rack design with a refined and solid exterior that maintains a uniform appearance for the data center. Set-up and maintenance could not be simpler, thanks to tool-less installation.

In addition to a 19-inch standard rack that fully meets rack-specifications as defined in EIA-310, a 23-inch network equipment rack is also available. Due to a perforation rate of over 70% for the front and rear doors, superior heat dissipation is assured. With its high load-bearing capability and optimal ventilation design, the Delta modular server rack is an ideal choice for high density data center set-ups.

The popularity of modular rack solutions is rapidly outpacing that of their older counterparts. By opting for a modular server rack, companies can match the current needs of their datacenter, while trusting that the modular hardware can easily be expanded in the future to accommodate business growth and increased demand for services.

Delta offers a full range of rack accessories to support and facilitate a well-organized data center that’s easy to maintain. Rack solutions can be customized with options like vertical or horizontal cable management channels, to make the best possible use of the available space. With removable roof cable ports and removable bottom covers, cables remain highly accessible for maintenance.


Product available regions :

Because product specifications vary slightly from region to region, please download your local leaflet or visit your local website for detailed product information.

EMEA North America South America SEA India China Taiwan South Korea

Modular design for optimizing space utilization.

Thanks to unsurpassed reliability, efficient use of energy, cost-effectiveness, potential for expansion, and sheer power, the modular rack system offers stable data storage along with peace of mind for data center owners who look ahead to the future of their businesses and of the industry as a whole.

Delta is proud to introduce its modular rack cabinet designed for maximum performance, convenience, flexibility and safety in high density IT room environments. A Delta rack cabinet can outperform the competition thanks to its increased space utilization and heat dissipation via an outstanding 70% perforation level. The racks are fully compliant with the standards of all major trade organizations and conformity assessment bodies within the industry, including IP20 (environmental protection rating from the International Electrotechnical Committee), EIA-310-D (requirements for rack cabinets from the Electronic Industries Alliance), UL 60950 (safe grounding standards established by Underwriters Laboratories), as well as the RoHS (Restriction of Hazardous Substances Directive). By opting for a Delta modular rack cabinet, data centers choose the ultimate combination of convenience, flexibility, and safety. Delta manufactures a 42U rack system to suit the needs of nearly any business, regardless of its size, industry, or application.

These modular racks are a breeze to install, to upgrade, and to maintain. Each one of them incorporates tool-less reversing front and rear doors with U-position numbers and a wide-angle rotation of 130 degrees, along with removable cable ports, bottom covers, and power troughs, and quick side panels. Stability and security are optimized through the inclusion of adjustable leveling feet. Each rack can hold up to 1420kg in unit weight while remaining stationary, any given one can easily be moved and maneuvered to different places as need be due to the convenient casters upon which it is mounted.

The sturdy exteriors of Delta’s modular racks can be set up for either a vertical or horizontal orientation, and are designed to give an organized and uniform appearance to the data centers to which they belong. The racks are engineered to be easy to stack in rows, and to be highly customizable in order to cater to the unique needs and environment of each data center. Each one features a split-rear-door design, which reduces the amount of space required for hot aisles, and which also makes the already-easy maintenance even simpler. A complete range of accessories are available, as well as four versatile multipurpose mounting bays.

Delta MCIS is a stalwart and powerful partner for companies that strive to offer the best possible service, and then to surpass the benchmarks of outstanding performance that they themselves set. With Delta modular racks, the networks and data centers of exceptional companies can soar to new levels of excellence.



  • Tool-less installing and removing & reversing front and rear doors
  • Removable power trough on the roof neatly manages power, network and optic cables
  • Tool-less removable roof cable ports for easier cable access and management
  • Removable bottom cover allows cable access through raised floor
  • Casters for convenient moving
  • Front and rear U-position numbers for easy installation
  • Easy to join racks in a row for a clean and secure data room
  • Front and rear doors open up to 130º for convenient installation and repair
  • Full range of accessories supporting a well-managed and organized data room


  • Split rear doors reduces space required for hot aisles and simplifying maintenance
  • Adjustable mounting rails with numbered guides helps adjust depth for different installation needs
  • Four multipurpose mounting bays for installing 0U rPDU or vertical cable trough
  • Fully meets industry-standard EIA-310 rack requirements


  • Supports up to 1420kg static weight
  • IP20 environment protection rating
  • Adjustable leveling feet for stability and security
  • Front and rear doors are grounded to the rack
  • Front and rear doors with locks

Download Product Catalouge


Delta offers a wide range of rackmount solutions, rackmount kits, and accessories for datacenter applications. If your application requires a modular server rack, Delta’s rack solution increases space utilization and offers increased heat dissipation through its intelligent perforation design. Server rack modularity is essential for modern datacenters, and offers the ideal answer for your next application. With its full range of datacenter infrastructure products, Delta’s industry-leading solutions will fulfill your needs and perform beyond your expectations.

Delta’s array of high-quality components can be combined in many different configurations for the total customization of your new or existing modular rack unit. The range of options means that you don’t need to feel limited by the constraints of the available hardware as you design and build the perfect rack unit configuration to meet the demands of your system. Delta’s rack mount accessory options allow you to choose the components that match your vision for your rack mount system, and make that optimal system a reality, instead of struggling to enable your datacenter applications to work correctly despite inappropriate hardware.

The versatility of Delta rackmount accessories ensures their successful adaptation for use in datacenter applications across many different industries, from medicine to telecommunications to the financial sector. And with Delta rack unit solutions, you have options, every step of the way. There’s no reason to settle for accessories that are almost right for your rack case–our range of products puts the ideal components within your reach.

Choosing a modular rack mount offers many benefits for your system, including the ability to expand in the future while retaining some or all of your existing hardware. As part of our modular server racks, Delta accessories enable superior ventilation and heat dissipation. A customized rack and accessories from Delta can guard cables against damage while keeping them organized and easily accessible, with the use of cable ladders and troughs, ring type wire holders, and cable management channels (available in either vertical or horizontal orientation, to match your system and the space in which it’s held). With the proper accessories, your rack case will enable easy access for maintenance and upgrades while protecting your system and your data. The peerless quality of Delta hardware extends to even the smallest components, with results that deliver unparalleled reliability and performance.

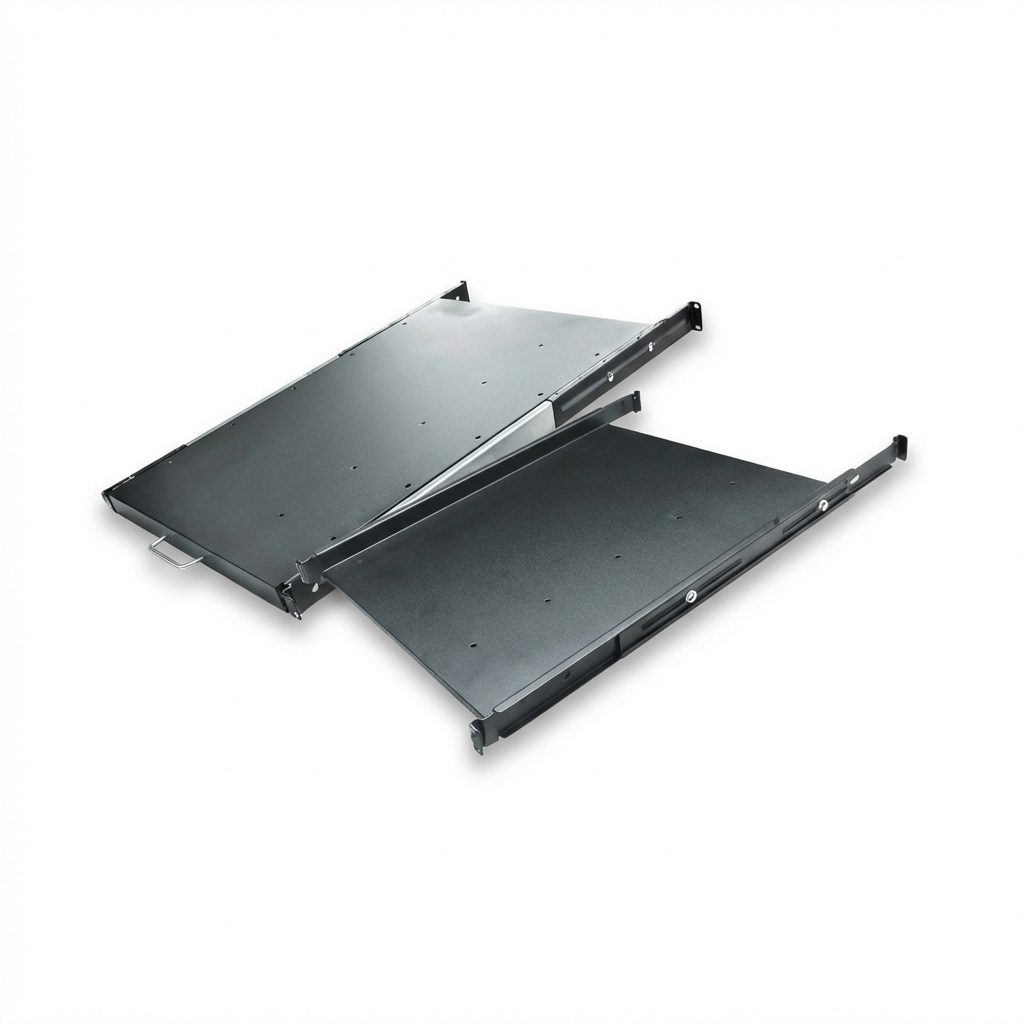

1U Fixed Shelf

Model: SR9004

Load Capacity: 60kg

Dimensions (WxDxH): 480.5 x 664 x 44mm

1U Sliding Shelf

Model: SR9005

Load Capacity: 40kg

Dimensions (WxDxH): 482 x 718 x 44mm

Bottom Cover

Model: SR9004

Dimensions (WxDxH): 538 x 834.6 x 39mm

Model: SR8003

Dimensions (WxDxH): 738 x 834.6 x 39mm

1U Blanking Panel

Model: SR9006

Dimensions (WxHxT): 482.6 x 43.7 x 1mm

10pcs / per box

2U Blanking Panel

Model: SR9007

Dimensions (WxHxT): 482.6 x 88 x 1mm

10pcs / per box

Power Cable Trough with Through Hole

Model: SR9001

Dimensions (WxDxH): 580 x 316 x 192mm

Model: SR8001

Dimensions (WxDxH): 780 x 316 x 192mm

Cable Through with Through hole

Model: SR9002

Dimensions (WxDxH): 592 x 75 x 125mm

Model: SR8002

Dimensions (WxDxH): 792 x 75 x 125mm

Vertical Cable Management Channel

Model: SR7002 (2 pcs)

Dimensions (WxDxH): 53 x 63 x 888mm

1U Horizontal Cable Management Channel

Model: SR7001

Dimensions (WxDxH): 482 x 50 x 44mm
