Delta UPS
Delta UPS Clients: Clients are most concerned about power issues such as power failure, power sag, power surge, under voltage or over voltage, frequency variation, harmonic distortion and line noise. Delta Electronics emphasizes the areas of redundant power supply, voltage regulation, equipment protection and adjustment and has designed and developed four UPS product families – Amplon, Ultron and Modulon. Delta UPS systems feature the following
Leading AC-AC Efficiency | Fully redundant design and configuration | High input and output power factors | Easy expansion without additional hardware | Supports to seamless operations at low level of TCO (Total Cost of Ownership)
Delta Single-Phase UPS
Amplon Family
Reliability for the most critical moments
The INX series is an online double-conversion UPS providing consistent sine-wave power to your critical equipment. The INX series features an input power factor corrector and best-in-class AC-AC efficiency of up to 90% resulting in greater energy savings. The INX series leads the industry in combining compact size, availability, flexibility and best total cost of ownership.
FEATURES
Availability
- True online double-conversion topology and zero transfer time to battery ensure high reliability
- High input power factor corrector (> 0.99) for controlled sine wave AC output
- Cold-start capability with temporary battery power when the utility power is out
- Automatic bypass to transfer the load on mains in case of overload & internal fault
- Battery deep discharge protection
Flexibility
- Excellent local communications through user friendly LCD display
- Intelligent management software connectivity via RS232, mini slot or USB port
- Three multi-functional buttons for the operation and selection of parameters
Low Total Cost of Ownership
- Protection against over voltage; charger working even when the input switch is in off position
- ECO mode to provide energy cost savings
- Wide input voltage range to reduce the chance of using the battery and to extend battery life
- Intelligent battery management sustaining battery life and performance
- Fan speed control by load level and room temperature to optimize performance
Download Product Catalouge
Introduction
High-performance power protection with greater energy savings
The Amplon N series is a true online double-conversion UPS that can provide your critical equipment with reliable, stable sine wave power. It features significant advantages, including an output power factor of 0.9 and up to 93% AC-AC efficiency for greater energy savings. The Amplon N series provides a safe power supply guaranteed for mission critical applications such as work stations, POS, ATMs, and more.
Features
Availability
- True online double-conversion topology and zero transfer time to battery ensure high reliability.
- Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified control circuit for enhanced stability.
- Wide input voltage range allows the UPS to work in harsh electrical environments.
- Generator compatibility ensures continuous and reliable power.
Green with Low TCO
- High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment.
- Output power factor up to 0.9 presents a stronger load capacity.
- AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings.
- Compact design saves more space for critical equipment.
Intelligent Management
- Excellent local communications through LCD display.
- Intelligent battery management maximizes battery performance and sustains battery life.
- Mini slot and USB port enhance monitoring and manageability.
Download Product Catalouge
Introduction
Innovative. Compact. High Performance.
The Amplon N series 6-10kVA UPS is a single-phase on-line UPS with pioneering technology that provides output power factor up to unity and AC-AC efficiency to a maximum 95%. Its remarkably compact dimensions reserve more room for critical equipment such as workstations, POSs, ATMs, office appliances, small server rooms, and production equipment. The Amplon N series superior features include a N+X parallel redundancy function and variable fan speed control to guarantee high system availability and best Total Cost of Ownership (TCO).
Features
The Most Compact Design and Best TCO
- The smallest dimensions in its class saves significant space for more critical equipment.
- A pioneer in unity power factor (kVA=kW) to maximize power availability.
- The highest AC-AC efficiency up to 95% and efficiency of 98% in ECO mode for exceptional energy cost savings.
- Automatic speed regulation function with multi-stage fan speed control maximizes system efficiency, significantly reduces audible noise, and prolongs the service life of the fans.
High Availability
- True online double-conversion topology and zero transfer time to battery ensure high reliability.
- Parallel configuration for expansion and N+X redundancy up to 4 units.
- Advanced DSP (Digital Signal Processor) controller for fast computation capabilities and a simplified control circuit for enhanced stability.
- Generator compatibility ensures continuous and reliable power.
Intelligent Management
- Excellent local communications through user-friendly LCD display and LED indicators.
- Intelligent battery management maximizes battery performance and extends battery life.
- Various types of communication interfaces enhance monitoring and manageability.
Download Product Catalouge
Introduction
Reliable power supply for small and medium enterprises
Delta’s Amplon R series is an online double-conversion rack-mountable UPS providing consistent sine-wave power to your critical equipment and reliable protection for IT equipment and data centers. The R series offers an output power factor of 0.9 and a best-in-class AC-AC efficiency of up to 93% for greater energy savings. The Amplon R series leads the industry in combining compact size, availability, flexibility, and low total cost of ownership.
Features
Availability
- True online double-conversion topology provides zero transfer time to ensure maximum protection of the equipment
- Watch-dog design of the DSP (Digital Signal Processor) increases reliability
- Cold-start capability provides temporary battery power when the utility power is out
- Operating temperature tolerance up to 50°C ensures critical loads’ continuity
- The Maintenance Bypass Box offers load continuity during battery replacement or other upgrades
Flexibility
- Compact dimensions meet the needs of different rack cabinets
- Convertible rack and tower configuration in 2U size cabinet
- Excellent local communications through rotatable LCD display
- Intelligent management software connectivity via RS232, mini slot or USB port
Low Total Cost of Ownership
- Wide input voltage range reduces the chance of using the battery and extends battery life
- Intelligent battery management sustains battery life and performance
- High output power factor of 0.9 provides more real power to critical loads
- High input power factor (pf > 0.99) and low harmonic distortion (iTHD < 3%) save upstream investment
- Up to 93% AC-AC efficiency and 96% efficiency in ECO mode results in marked energy cost savings
- Fan speed control by load level and room temperature optimizes performance
Download Product Catalouge
Introduction
A total solution for reliable power with high availability and performance
The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfill customers’ requirements. Unity output power factor maximizes capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing.
Features
Availability & Flexibility
- True online double-conversion topology and zero transfer time to battery provides 24/7 full-time protection
- Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life
- AC-start function allows the UPS to be switched on without connecting to a battery
- Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
- Up to four units parallel capacity allows redundancy and load expansion
- Hot swappable batteries ensure continuous operation even when batteries are being replaced
- VRLA and Li-ion External Battery Cabinet (EBC) are available for scalable runtime
- Flexible battery quantity configuration enables optimized battery investment. And when one battery fails, it could be removed without replacing the entire battery string, reducing maintenance cost and efforts
- The Power Distribution Box (PDB) and Maintenance Bypass Breaker (MBB) are optional respectively for easy configuration and easy UPS replacement
- The rRPP (Rack Remote Power Panel), which can be integrated with standard server racks, simplifies power output distribution and power monitoring
- Common battery configuration is supported in RT 15/20kVA parallel mode to save installation space and additional battery costs
Efficiency & reliability
- Unity output power factor guarantees no de-rating with loads and provides permanent 100% kW
- Best-in-class AC-AC efficiency of up to 96.5% and 99% in ECO mode lowers energy costs
- Automatic fan speed control maximizes system efficiency and significantly reduces audible noise and prolongs battery life
- Fan failure detection sends early warnings to facilitate predictive maintenance of UPS
Manageability
- Intelligent battery management to extend battery life and maximize battery performance. The battery aging detection monitors battery status for predictive maintenance, and the 3-stage charging mechanism keeps the battery from continuous float charging during the intermission stage to prolong battery life
- Excellent local management through a user-friendly graphical and multi-lingual LCD display
- Various types of communication interfaces, including USB, RS-232, and RS-485 ports, mini slot, REPO/ROO for remote management, and in-built dry contacts for monitoring and notification of system operation conditions
- UPS management software such as ShutdownAgent and InfraSuite Device Manager allow users to monitor UPS status and protect critical devices
Download Product Catalouge
Delta Three-Phase On-Line UPS
Ultron Family
Introduction
Power Reliability with the Best Total Cost of Ownership
The Ultron EH series is an online double-conversion 3p-1p UPS which provides reliable power protection for IT rooms, SMBs, telecommunications, banking, medical facilities and industry. Supported with DSP based technology, it offers rapid computation capabilities that enhance system stability and provide precise voltage to load. The Ultron EH series offers many superior features including N+X parallel redundancy and a built-in manual bypass switch to guarantee higher availability and reliability for protecting your critical loads.
Features
Assured Reliability
- True online double-conversion technology to completely isolate the output power from all input anomalies.
- DSP based technology to support rapid computation capability and a simplified control circuit for enhanced stability.
- Dual input design to allow different power supply sources for enhanced availability.
- Built-in manual bypass to ensure continuous power to the load even if the UPS fails.
Best Total Cost of Ownership
- A wide input voltage range of up to 305~477V to reduce battery discharge probability and prolong battery life.
- ECO mode efficiency up to 96% to reduce operating cost.
- Small footprint to save space.
High Flexibility
- Parallel expansion and N+X redundancy up to 4 units without requiring additional cards or equipment.
- Additional charger and external charger box for flexible capacity expansion.
- Remote and local emergency power-off functions (EPO) to promptly manage the UPS when emergencies occur.
Easy Manageability
- Multi-connectivity interface to support remote UPS monitoring and management.
- Advanced management software to provide event alert management, remote shutdown event log tracking and analysis.
- Reliable battery management for better battery protection.
Download Product Catalouge
Introduction
Best-in-class power protection with maximum power and cost efficiency
The Ultron HPH is a true online double-conversion UPS offering the best-in-class combination of maximum available power, unbeatable energy efficiency and superior power performance for small data centers and other mission critical applications. With fully rated power (kVA=kW), the Ultron HPH provides maximum available power without de-rating the UPS. Thanks to the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron HPH features up to 96% AC-AC efficiency. Delta’s advanced digital PFC control also contributes low iTHD < 3% and high input power factor > 0.99 resulting in significant TCO (Total Cost of Ownership) savings. Facilitating increased availability and power performance, the Ultron HPH is an ideal solution for protecting your mission critical operations.
Features
Best-in-Class Power Performance and Efficiency
- Fully rated power (kVA=kW) for maximum power availability
- Leading AC-AC efficiency up to 96% saves energy costs
- Low harmonic pollution (iTHD<3%) & high input power factor (>0.99) reduce upstream investment costs
Assured Reliability
- Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life
- DSP based technology enables reduction in the number of electronic components to lower failure rate
- Redundant auxiliary power and fan design* enhance system reliabile* Applied for models HPH-60/80/100/120K
- Watch-dog design of dual auxiliary power circuit to eliminate single-point failure to ensure reliability
- Built-in manual bypass ensures continuous power to the load even if the UPS is under maintenance
Greater Flexibility
- A wide choice of configurations, such as N+X redundancy, and hot stand-by
- Adjustable charging current and battery voltage meet different battery configuration requirements
- Flexible battery configuration optimizes battery investment
Superior Serviceability and Management
- Swappable interior architecture and front access servicing enables quick and easy maintenance* * Applied for models HPH-60/80/100/120K
- Multi-connectivity interface supports remote UPS monitoring and management
Download Product Catalouge
Introduction
Highly reliable and efficient backup power for medium enterprise operations
The brand-new Ultron HPH series 160-200kVA is a true online double-conversion UPS offering the best-in-class combination of power performance and efficiency for medium data centers, pan-IT, and other mission critical applications. Thanks to Delta’s R&D expertise and excellent engineering capabilities, the Ultron HPH features up to 96.5% AC-AC efficiency, low iTHD < 3%, and high input power factor > 0.99 resulting in significant total cost of ownership (TCO) savings. Highlights of the highly reliable Ultron HPH series UPS design include key component redundancy and proactive battery health detection. With its combination of superior availability and power performance, the Ultron HPH 160-200kVA is the top choice for power protection of sustainable medium business operations.
Features
Best-in-class Power Performance and Efficiency
- High AC-AC efficiency of up to 96.5% and ECO mode to 99% for significant energy cost savings
- Low harmonic pollution (iTHD < 3%) and high input power factor (> 0.99) reduces upstream investment costs
Assured Availability
- Optional redundant controller supports dual CAN bus and ring connection for high system availability
- Proactive battery aging detection for high reliability
- Easy event log check via touch panel and firmware upgrade via USB port
Greater Flexibility
- Parallel expansion and redundancy up to 8 units, 1.6MVA of total power capacity
- Flexible battery configuration 30~46 pieces optimizes battery investment
- Supports either top or bottom cable entry in the single cabinet. The unique fixed symmetric terminal design avoids cable bending issues to enhance cable reliability
Superior Manageability
- User-friendly 10” colored LCD with touch panel enables easy local UPS management
- Environment information such as security, water, fire and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS
- If the UPS is equiped with Delta’s battery management system, the battery information can be integrated into the UPS and monitored via LCD
Download Product Catalouge
Introduction
The combination of reliable protection, cost-effective power with compact footprint and high-level performance
The latest HPH Gen.2 20-40kVA offers a compact footprint with full rate output PF at 40 degree to optimize the UPS sizing. Ensure the 0.99 input PF and iTHD < 2% for maximum upstream source compatibility. Low total cost of ownership is achieved by >96% efficiency, energy recycle mode, wider battery Q’ty configuration and inbuilt 15A charger. In addition, it provides a user interface friendly touch panel, manual protection devices and caster wheels for easy deployment, installation and operation. All these features to ensure the ideal solution for various small and medium-sized data centers and critical power backups.
Features
Easy deployment and maintenance with compact design
- Inbuilt casters for easy move-in, positioning and maintenance
- Inbuilt input / bypass input / output / maintenance bypass breakers for completed distribution panel
- Slim design and smallest footprint (40kW in 0.15m2) to reduce the space wasting
Low Total Cost of Ownership
- Wide battery Q’ty configuration (30-46pcs) to optimize the battery solution
- High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings
- Low input harmonic distortion (iTHD < 2%) which is highly compatible with upstream of UPS power without additional filter or over sizing generator
High Manageability and Flexibility
- User-friendly 5″ color touch screen enables easy local UPS management
- Optional SNMP IPv6 and Modbus communication cards for remote monitoring
- Inbuilt 15A charger for long backup solution without additional cost
- Optional IP42 kit for harsh environment application
Download Product Catalouge
Introduction
The Ultron NT series is a three phase UPS featuring customized I/P-O/P ratings for various applications. With N+X parallel redundancy or expansion, it guarantees high availability and reliability for your critical loads.
The Ultron NT series offers continued seamless protection for your business even under 100% unbalanced loading conditions. Its economy mode improves efficiency by 4% to 7% and saves operating cost.
Features
- Available from 20 to 4,000 kVA (8 x 500 kVA in parallel).
- Parallel redundancy without requiring extra hardware to increase reliability.
- Optional harmonic filter and 12-pulse rectifier.
- Redundant auxiliary power and control circuit ensures higher reliability.
- Inbuilt maintenance and static bypass switch.
- Multi-language LCD display and LED status indicators.
- RS232, RS485 and six programmable dry contact outputs.
- Compatible with generator installation and unbalanced loads.
- Optional external battery cabinet for longer backup time.
- Parallel expansion as your business grows and consequently saves initial investment.
- Wide input voltage range extends battery lifetime.
- Economy mode saves energy and operating cost.
- Common battery installation saves initial investment.
Download Product Catalouge
Introduction
Leading in power performance and efficiency

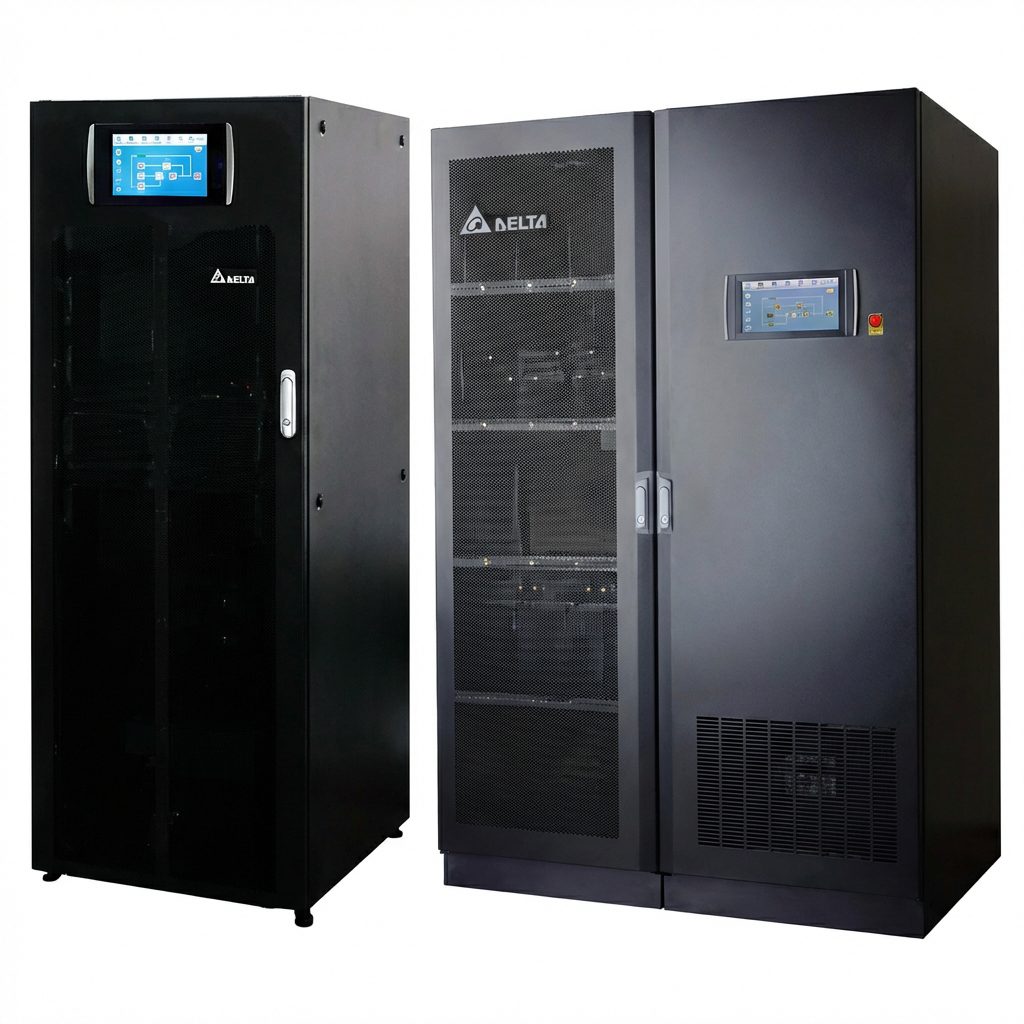

Delta’s Ultron DPS is a double-conversion and IGBT-rectifier three phase UPS. With the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron DPS features industry leading performance of up to 96% AC-AC efficiency. Thanks to Delta’s advanced digital PFC control, it also has low iTHD < 3% and high input power factor > 0.99 resulting in significant total cost of ownership (TCO) savings. Aiming to achieve the highest availability possible, Delta has enhanced special designs for battery management, hot-swappable fans and ease of maintenance.
The excellent power performance and high system availability of the Ultron DPS provide customers with the benefits of a stable power supply, high power efficiency, low capital investment and low overall operation cost.
Features
High Reliability
- N+X redundancy or hot-standby configuration increases system reliability
- Wide input voltage range (DPS 160~500kVA : -40% ~ +20%) allows the UPS to work in harsh electrical environments
- Field programmable sequential start-up reduces the impact on the generator
- Intelligent fan speed control and redundant fan design prevent UPS from overheating and increase system reliability
Reduced Total Cost of Ownership
- High AC-AC efficiency even at light load levels reduces energy loss and saves operating costs
- High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) eliminate the need to over
High Flexibility
Delta Ultron DPS series UPS are available in full power ratings ranging from 160kVA to 500kVA in a single unit to fit each specific application requirement.
There are three different cabinets of Ultron DPS series UPS with optimized footprint. Customers can save valuable space from the leading power density and compact design. Light weight also reduces transportation and installation costs.
Parallel expansion of Ultron DPS series UPS up to 4000kVA without extra hardware allows quick capacity upgrade to meet business growth.
Common batttery configuration of Ultron DPS in parallel mode can support customers to:
- Significantly save installation space and rent expenses
- Reduce additional investment on batteries
- Make UPS expansions easier without addi tional battery investment
- Save the costs of possible floor loading enhancement
Easy Maintenance
- Hot-swappable fans reduce maintenance lead time (applicable for models 160~500kVA)
- Built-in manual bypass allows “zero downtime” to ensure system availability during service maintenance
- Main I/P and O/P switches detection provide quick diagnosis when faults occur
Intelligent Battery Management
Delta intelligent battery management system can sustain battery lifespan and the capacity of battery backed up through the functions of :
- Battery temperature monitoring & compensation
- Battery remaining capacity displayed in percentage
- Over charge/discharge protection
- Boost/float stage charge
- Auto/manual battery test
- 38~42 battery units in one battery cabinet optimizes investment (applicable for models 160~500kVA)
Download Product Catalouge
Introduction
The Next Generation UPS Answering the Demand of Large Data Centers and Colocations
Delta’s superior Ultron DPS series 300 – 1200kVA UPS supports unity output power factor to deliver up to 10 MW power capacity to meet the demands for large data centers and colocations that require higher power capacity. The Ultron DPS series guarantees the highest level of system reliability and resiliency by supporting self-detection of key components with pre-warning function, multilayered redundancy design, and complete power rating coverage. Moreover, the DPS series supports advanced manageability. Key environment parameters, and event analysis can all be monitored via local 10” LCD monitor and remotely. Along with optional battery management software, the DPS series enables users to achieve predictive maintenance and minimize system downtime, while lowering the total cost of ownership (TCO).
Features
Ultimate Availability
- Supports up to 10 MW power capacity with the parallel redundancy and expansion up to 8 units
- Redundancy components and dual CAN bus ensures system availability
- Proactive detection of key component status for early diagnosis on UPS malfunction
- Intelligent battery health diagnosis enables better battery maintenance and replacement
- Advanced event analysis, including 10, 000 event logs, waveform capturing and key paremeters recording, to detect UPS abnomality and ensure higher availability
Excellent Performance
- The industry’s leading power density and smallest footprint with the design of both top/button cable entry and inbult switches, which allows you to flexibly utilize the space under the circumstance of high power requirements
- Unity output power factor guarantees no-rating and provides 100% kW
- AC-AC efficiency of up to 96.5% and 99% in ECO mode resulting in marked energy cost savings
- Supports both VRLA and environment-friendly Li-ion batteries
Sophisticated Manageability and Flexibility
- User-friendly 10” color touch panel simplifies local UPS management
- Environment information, such as security, water, fire, and temperature can be integrated and monitored via the LCD panel of the UPS
- If the UPS is equipped with an external battery management system, the battery information can be integrated and monitored via the LCD panel of the UPS
- Fully front access and modular design of key components shortens the mean time to repair (MTTR)
- Flexible battery quantity of 30-46 pcs achieves optimal battery investment
Download Product Catalouge
Delta Modular UPS
Modulon Family
Introduction
The next generation of modular UPS systems designed for ultimate availability,excellent performance, high efficiency, and ideally suited for medium-sizeddatacenters.
In this IT intensive world with heavy data traffic driven by cloud, 4G/5G and media streaming applications, IT managers are facing the challenges of increasing rack power density and limited data center space. Delta’s innovative modular UPS technologies provide the answer to customers’ demand for ultimate availability, excellent performance, and high efficiency. The brand-new Delta Modulon DPH series UPS 80/120 kVA achieves the industry’s leading power density of 20kW per module in 2U height, offering the smallest footprint and best space utilization. The Modulon DPH Series UPS is the ideal modular power protection for all critical IT application with its’ small package, flexibility and seamless integration.
Features
Excellent Power Performance
- he industry’s leading power technology offers up to 120kW within all equipped breakers in 162.8 kW/m3 which supports the top/bottom cable entry without additional cabinet to achieve the best utilization compared with its peers
- High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings
- Green mode featuring a load aggregation function optimizes system efficiency
Ultimate Availability
- Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk
- Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure
- Key components aging pre-warning mechanism to provide the proactive reliability to minimize the human error and reduce the downtime risk (optional)
High Manageability
- User-friendly 10″ color touch screen enables easy local UPS management
- Environment information such as temperature, humidity and transmits signals from environment sensor can be integrated into the UPS for easy monitoring via the LCD of the UPS
- If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS
Download Product Catalouge
Introduction
The modular UPS ideal for medium-sized datacenters
Introducing the next generation of modular uninterruptible power supply systems (UPS systems) designed for ultimate availability, excellent performance and high efficiency ideally suited for medium-sized datacenters.
IT operations are a crucial aspect of most business operations. One of the main concerns of datacenters is operational continuity. The most stringent datacenters require the highest availability possible to sustain mission critical functions, the backbone of business continuity. As data keeps growing and rising energy costs are the norm, datacenters will continue to be power hungry facilities. From a capital investment perspective, maintaining high efficiency and having the flexibility to rightsize a datacenter is a critical concern. The Modulon DPH is a modular UPS ideal for medium-sized datacenters demanding in peak efficiency and availability at a lower Total Cost of Ownership (TCO).
- Fully fault-tolerant design to meet strict requirement on availability due to increased IT-dependent business operation
- Scalable flexibility to rightsize the infrastructure at the right time without overinvestment
- Industry leading power performance and efficiency to save energy cost that reduce the operational expense
The Modulon DPH is in a dimension of 19” enclosure providing rack-based agility to datacenter space arrangement and infrastructure setup. As a powertrain of datacenters, the Modulon DPH can integrate the power distribution in a same rack or through the deployment of paralleled rack enclosure depending on the power capacity requirement, a perfect combination of power protection and distribution to streamline the power management in the datacenters.
Features
Ultimate Availability
- Advanced fault-tolerant design achieved by self redundancy to guarantee operation continuity
- Self-synchronization of power and control modules for continuous on-line operation even in the event of control module failure to avoid downtime caused by single point failure
- Hot-swappable key modules and components to ensure Mean Time To Repair (MTTR) close to zero without downtime risk
- High overload protection to support 125% overload for 10 minutes and 150% for 1 minute
High Scalability
- Vertical expansion from 25kW to 75/150/200kW supporting N+X redundancy in a single rack enclosure to save footprint
- Parallel expansion up to four units without requiring additional hardware
- Variable configurations possible providing the scalable flexibility up to Tier 4 standard
Excellent Power Performance and Efficiency
- Fully rated power (kVA=kW) to maximize power availability
- High AC-AC operating efficiency of 95% at 30% light load and 96% from 50% load resulting in marked energy cost savings
- Low harmonic pollution (iTHD < 3%) to reduce upstream investment costs and meet demanding power requirements
Easy Maintenance
- Built-in manual bypass features to eliminate maintenance-related downtime
- Proactive detection of fan failure and switch fault for early diagnosis on UPS malfunction
- Plug and play to simplify the maintenance process
Download Product Catalouge
Introduction
The world’s highest power density providing ultimate MW power protection with leading power performance and superior reliability
In this IT intensive world with heavy data traffic driven by cloud, 4G/5G and media streaming applications, IT managers are facing the challenges of increasing rack power density and limited data center space. Delta’s innovative modular UPS technologies provide the answer to customers’ demand for high power density, high power performance, and ultimate availability. The brand-new Delta Modulon DPH series UPS 50-300/500/600kVA achieves the industry’s leading power density of 50kW per module, offering the smallest footprint and best space utilization. The Modulon DPH Series UPS is the ideal modular power protection for MW data centers to achieve total cost of ownership (TCO) optimization..
Features
Excellent Power Performance
- The industry’s leading power density per module at 50kW in 3U space, and the smallest footprint for 500kVA in a single rack and 600kVA in two racks, to achieve the best utilization compared with its peers
- High AC-AC efficiency up to 96.5% and ECO mode to 99% resulting in marked energy cost savings
- Green mode featuring a load aggregation function optimizes system efficiency
Ultimate Availability
- Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk
- Redundancy components and dual CAN bus delivers highest system availability and avoids single point of failure
- Modular UPS grows with your business by parallel expansion up to 8 units for 4.8MVA of total power capacity
High Manageability
- User-friendly 10” color touch screen enables easy local UPS management
- Environment information such as security, water, fire, and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS
- If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS
Download Product Catalouge
Introduction

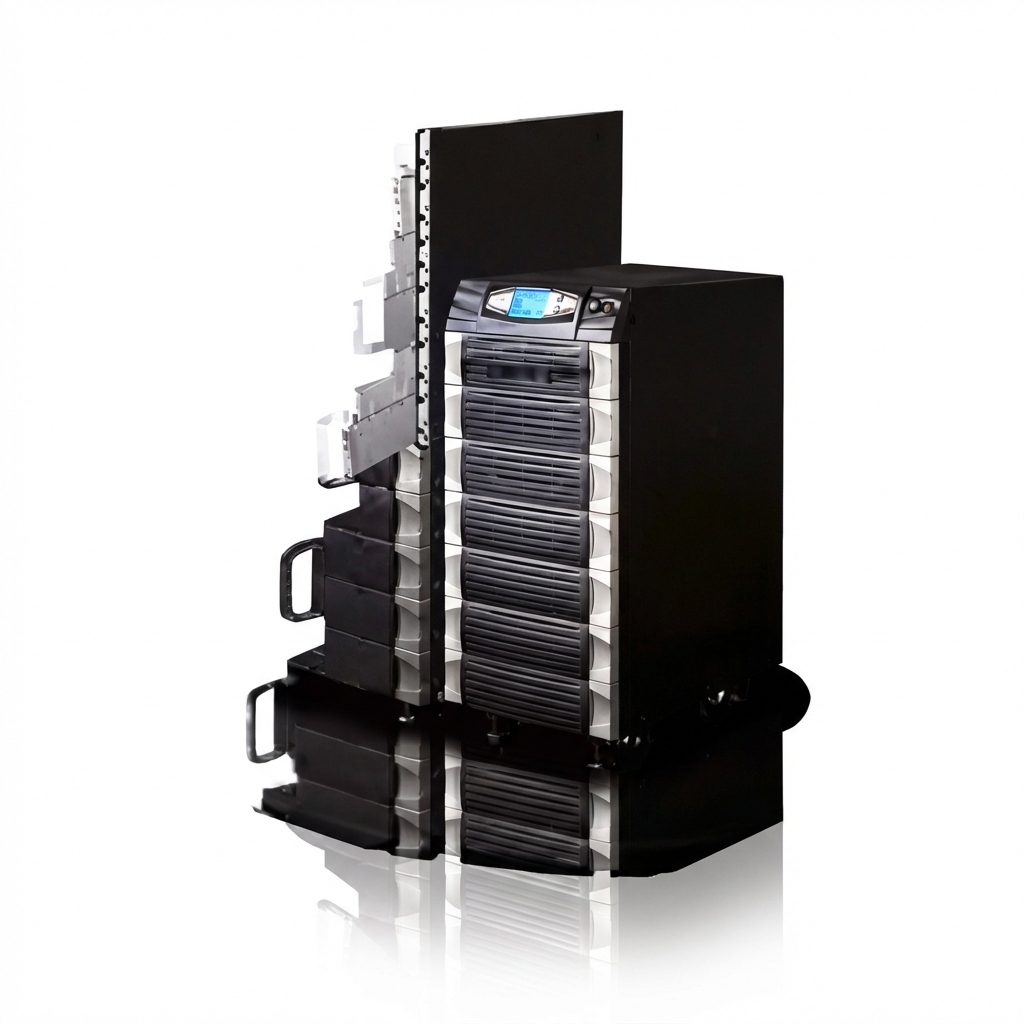

The Modulon NH Plus series is Delta’s new generation UPS featuring high efficiency, hot-swappable modular structure and N+X redundancy. With its industry leading 94% high efficiency, the NH Plus series deliversremarkably low total cost of ownership in terms of both capital expense and operating expense.
With N+X module and system redundancy to guarantee reliability and availability, the Modulon NHPlus series sets anew milestone for UPS protection in mission critical applications.
Features
- Available from 20 to 480 kVA (4 units x 120 kVA in parallel).
- Redundancy at module and system level.
- Hot-swappable function ensures uninterrupted operations during maintenance.
- Redundant auxiliary power and control circuit ensures higher reliability.
- Inbuilt maintenance and static bypass switch.
- Modular design provides easy maintenance and scalability.
- Multi-language LCD display and LED status indicators.
- Two smart slots and six programmable dry contact outputs.
- Optional external battery cabinet for longer backup time.
- Low harmonic distortion (iTHD< 3%) optimized generator size to save initial investment.
- High input and output power factor (I/P pf >0.99; O/P pf up to 0.9) and 94% high efficiency reduce operating costs.
